Description
12-24V thruster, brushless motor SD600 remote control
2 different plugs: XT60 plug, and T plug, choose the appropriate plug according to the battery needs

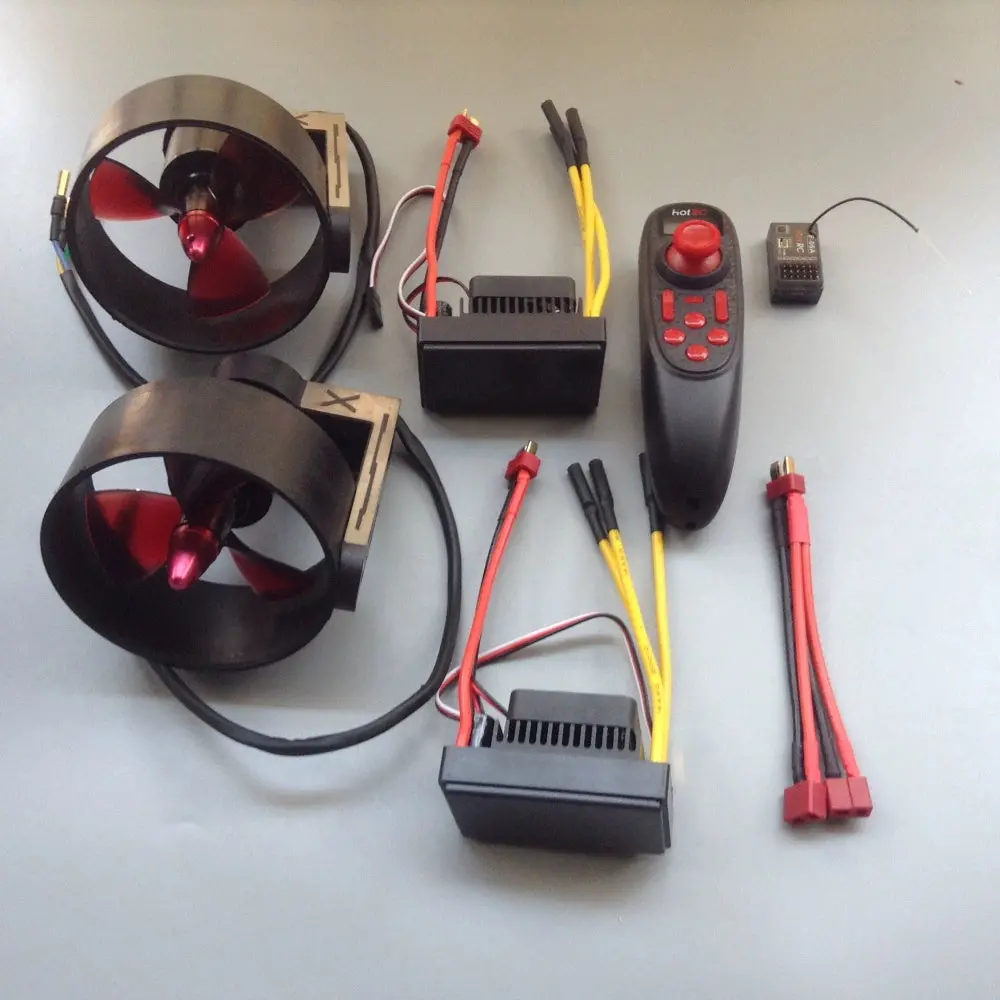

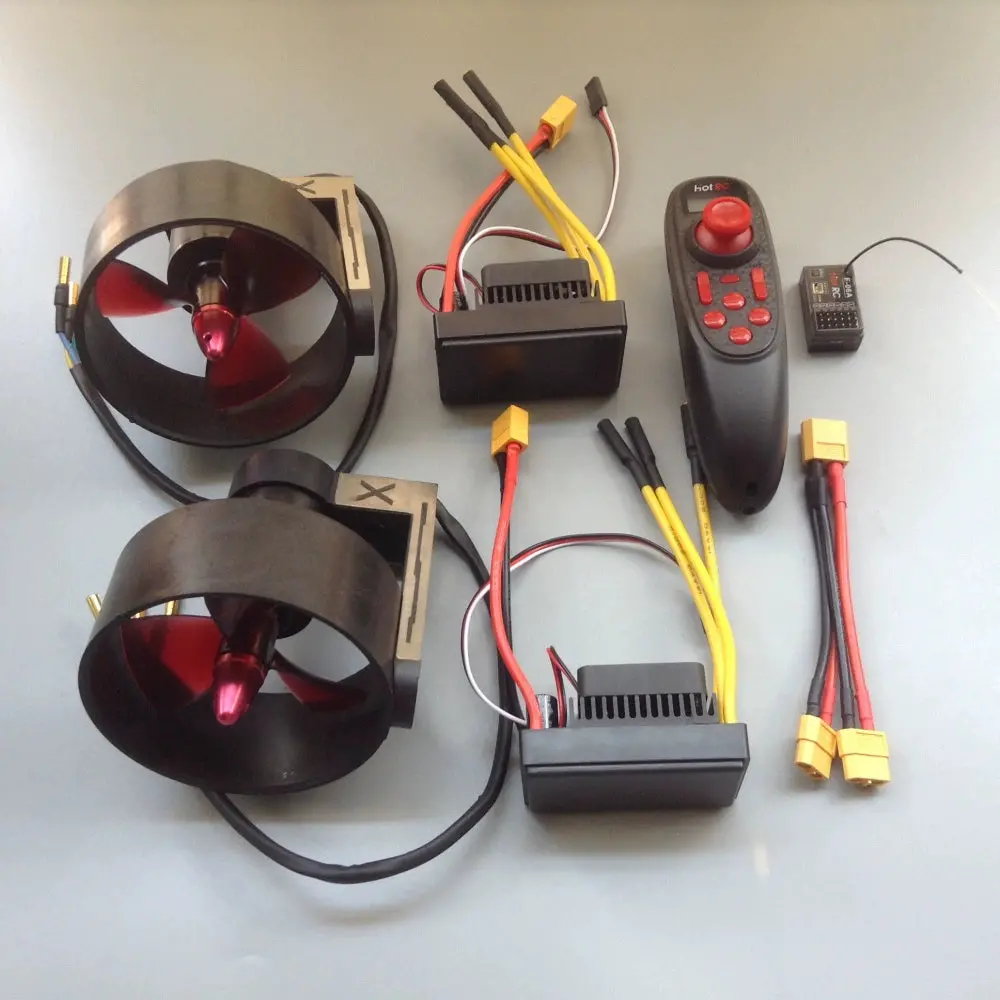

Set accessories table:
24V thruster, 1 pair of forward and reverse propellers
70A air-cooled brushless ESC 2 pcs
DS600 remote control 1 set
1 voltage parallel Y wire
Remote control can: forward, backward, turn left and right, throttle stepless speed change.
Package voltage requirements. 12v – 24v voltage, lithium battery is to use 3s -6s lithium battery
(You cannot use 7s batteries, nor can you use 12v batteries to connect 2 in parallel)
Using a 6s lithium battery, the thrust is 10kg, which can push kayaks, fishing boats, and paddle boards.
Battery use needs to pay attention to current. The battery output current needs to be 60A or more.
If the output current of the battery is small, the motor will not be able to be carried, or the battery will be hot to protect the power failure.
The DS600 remote control is a 6-channel remote control. After using 2 channels, there are still 4 channels left, which can be connected to other devices.
Note: The electric regulator, remote control and receiver are not waterproof. It needs to be installed on the inside of the boat or in a sealed box to avoid water damage.
