AFDHS-2A Micro ESC & Receiver Combo for 1/87 RC Models – Flysky-Compatible

Description

Flysky AFDHS-2A protocol micro ESC (bi-directional brush) light integrated receiver, suitable for 1/87, 1/72, 1/64 and other car models. Wiring as shown below, LED limited viewership of 0-1kΩ according to their needs, or not.
Code matching method: First turn on the code matching mode of the remote control, and turn on the receiver power supply to automatically code.

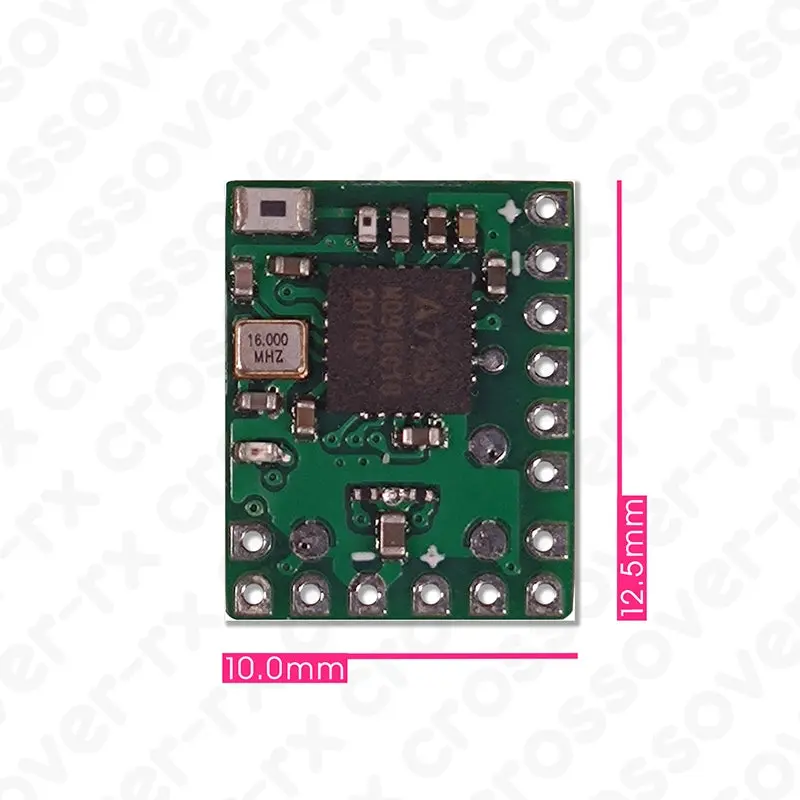

Size: 10 * 12.5 * 2.5mm

Working voltage: DC 3.3-5 v

Protocol: FLYSKY AFHDS-2A

ESC output current: maximum 3A
The buyer must have electronic welding experience, we cannot provide welding guidance.
