Description

CROSSRC TC6 C12 1/12 rc climbing car electric simulation truck engine CS-97400730
Suitable for military truck remote control models, tractors, etc. 1/12 remote control models

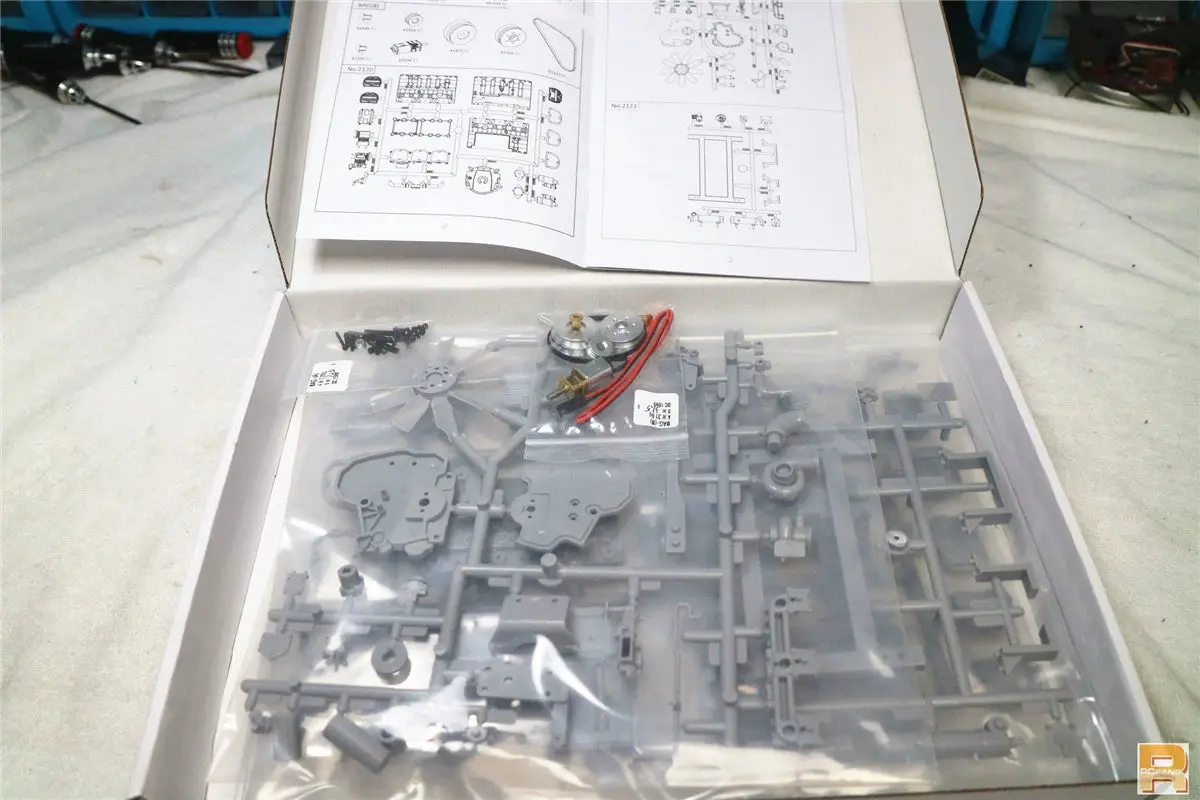

Products include:
1. Engine housing
2. Linkage motor + belt, pulley
3. Display base/loading fixing bracket
4. Sleeve tool
The installation location needs to be fixed by customer DIY.
The product is a spare part, and the basic color is gray and white. The buyer needs to spray and install it (the product picture shows the effect after installation).

TC6 engine installation tutorial:

This is the heart of a rotary engine.

Note that there are 2 installation methods for the engine:

1. Installation method on the car

2. Static placement and installation method

The following installation methods are combined as follows:

1. Loading method (middle + right)

2. Static placement (left + right)

So you need to pay careful attention to the prompts in the manual when installing the next parts

Glue the connected tubes

The color scheme of the engine reserves enough time for the paint to dry before assembly, because the parts are small, ABS glue needs to be pressed hard to combine, and if the paint is not dry, it will leave a trace of compression

The installation program needs to be installed strictly according to the order of the instructions, because some parts are installed successively and stacked on top of each other

In terms of turbine paint, the angry turbine retains silver, and the dead turbine. I used a princess red primer to spray and then washed it with black wash paint. It’s a little old, because the real cars are basically rust and Wuwu.

The machine on the turbine will come immediately, domineering

Install a large belt runner. After installing the locking screw, the pulley rotates freely. If it is astringent or stuck, it should be that the front and back sides of the copper sleeve are installed in the wrong direction.

This is a belt tensioning wheel push rod.

Tensioning wheel push seat parts

Tensioning wheel installation

Gas tank installation

Lug seat installation

Engine base and belt wheel block installation

At this time, I saw the gearbox clutch drum, which was very emotional

Install a fan

Updated with more widgets

The engine hoisted onto the frame, feeling very excited
