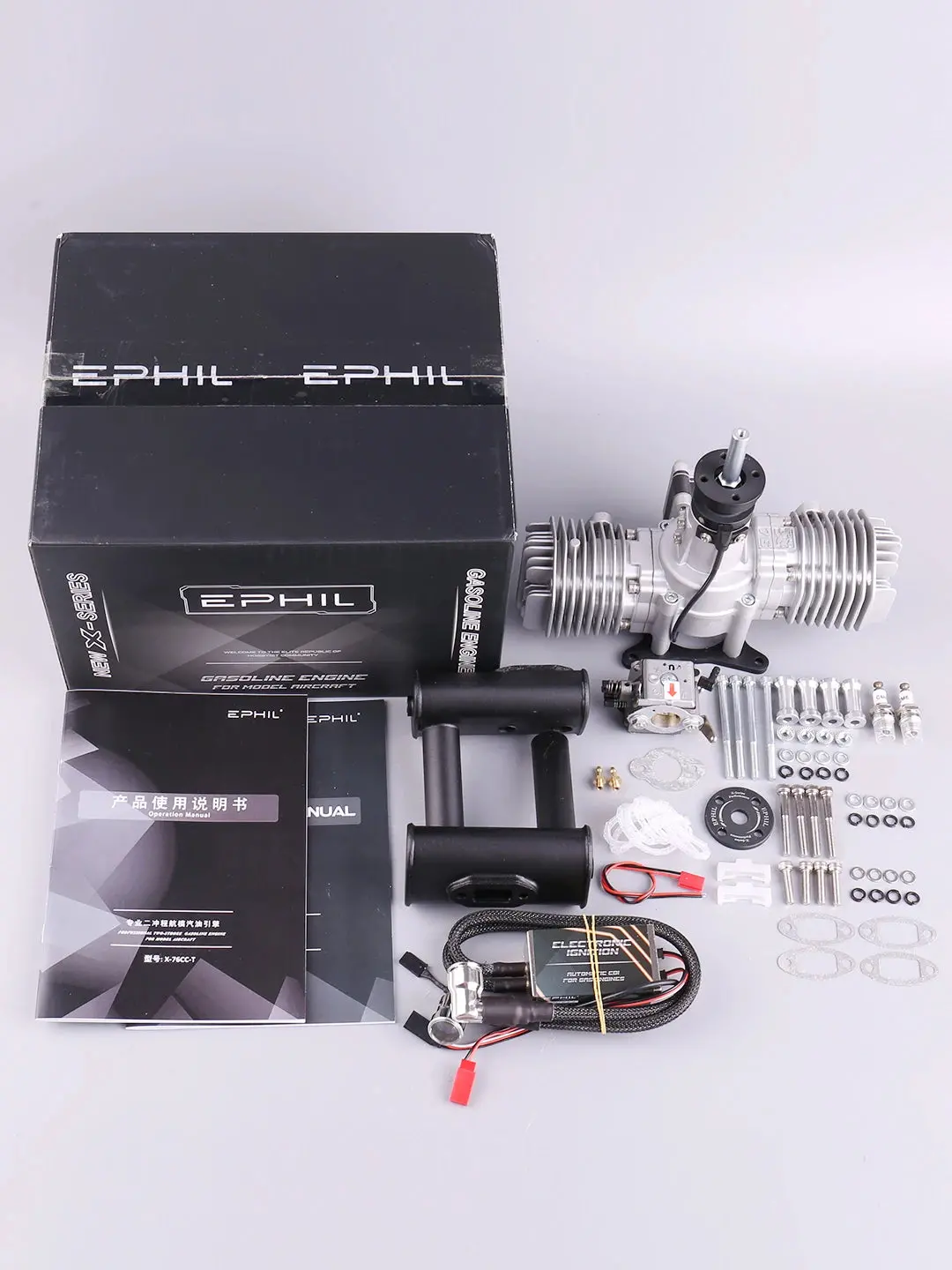

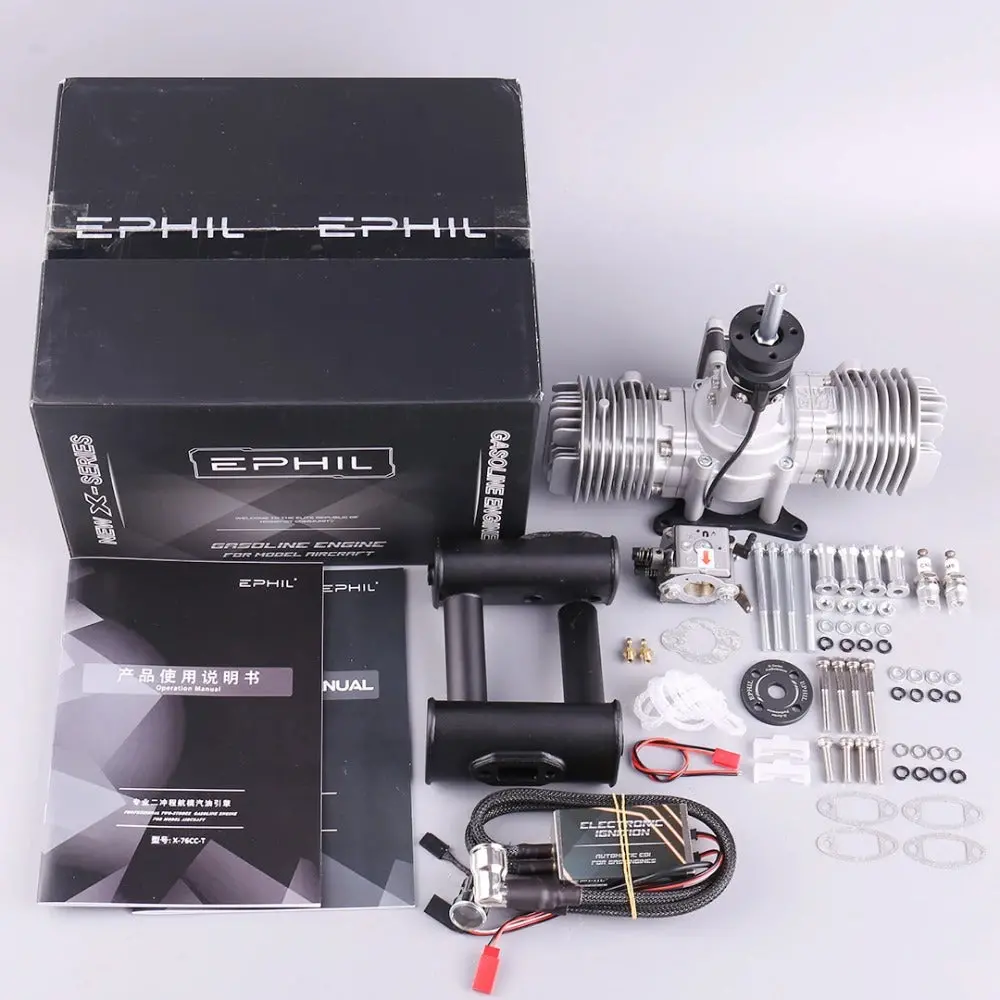

EPHIL X-76CC-T Opposed Twin-Cylinder Two-Stroke Gas Engine for RC Aircraft

Description

• EP – 76cc  Twin Gas Engine (Without electric start)

  Model: X-76cc-T

  Displacement: 76cc (4.64 cu in)

  Performance: 9.0 HP

  Speed Range: 1600-7300 RPM (Test Propeller-24*9)

  Bore: 39 mm (1.54 in)

  Stroke: 32.5mm (1.28 in)

  Static Thrust: 18.5 kg @ 100 m ALT (40.8 lb @ 328 ft ALT)

  Static Thrust: 16.8 kg @ 1800 m ALT (37.1 lb @ 5900 ft ALT)

  Compression ratio: 9:1

  Lubrication ratio: 40:1 (Fuel: 2-Stroke Full Synthetic Oil)

  Ignition Voltage: 6-14 V

  Spark Plug Type: CM6 Iridium Spark Plug

  Recommended Propeller: 22×10; 23×8; 23×10; 24×8 24 x 9

  Weight of Main Engine: 1688g

  Weight of Muffler Set: 174g (L&R Mufflers; Screws)

  Total Weight: 2134g (4.7 lb)

Size
