Description
Model ratio: 1:14
Material: brass, steel, aluminum alloy

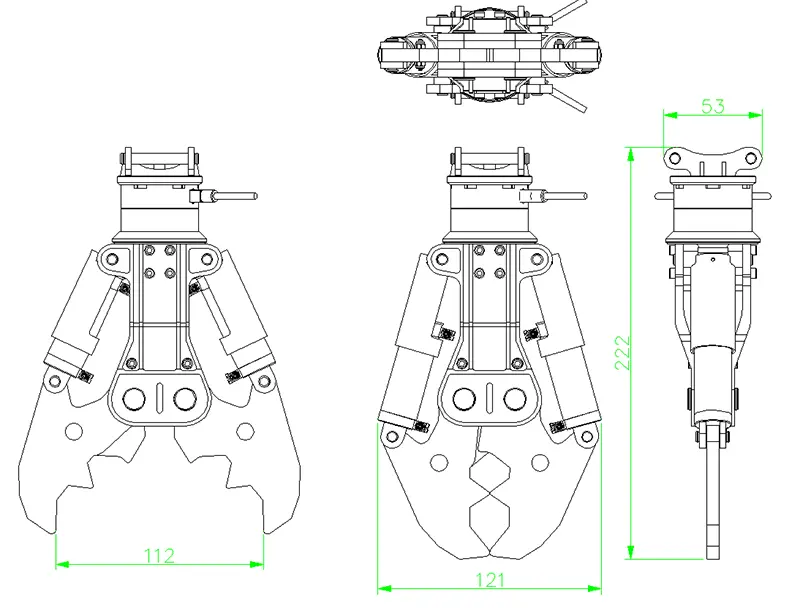

Hydraulic shears dimensions: length 222, width 121, height 53, unit MM (excluding oil pipe)
Weight: 1.29 KG (net weight)

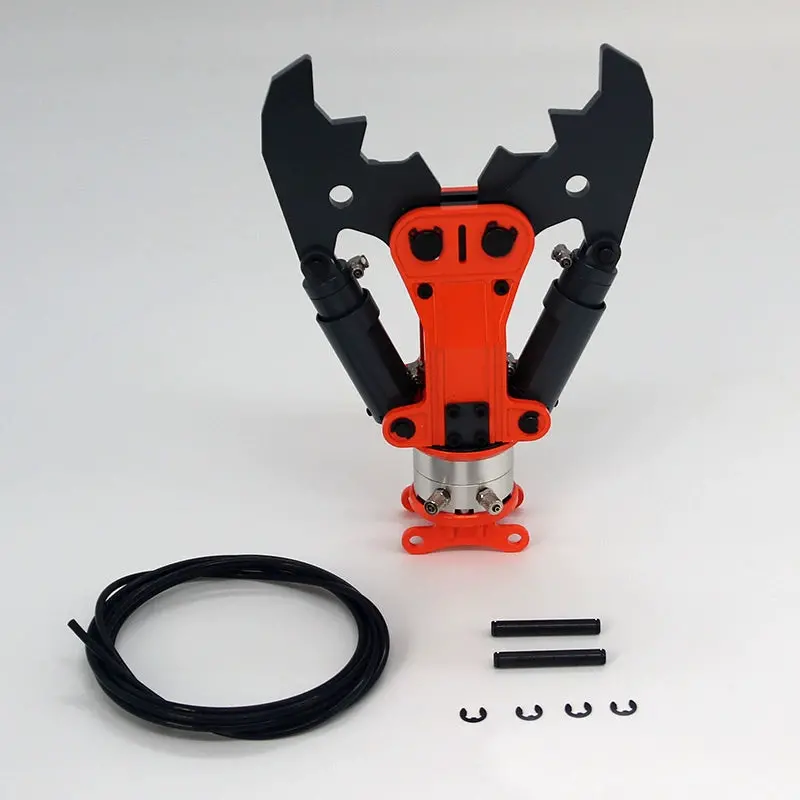

Standard: pin + E-type retaining ring; φ3.2 black high-pressure oil pipe 2 meters

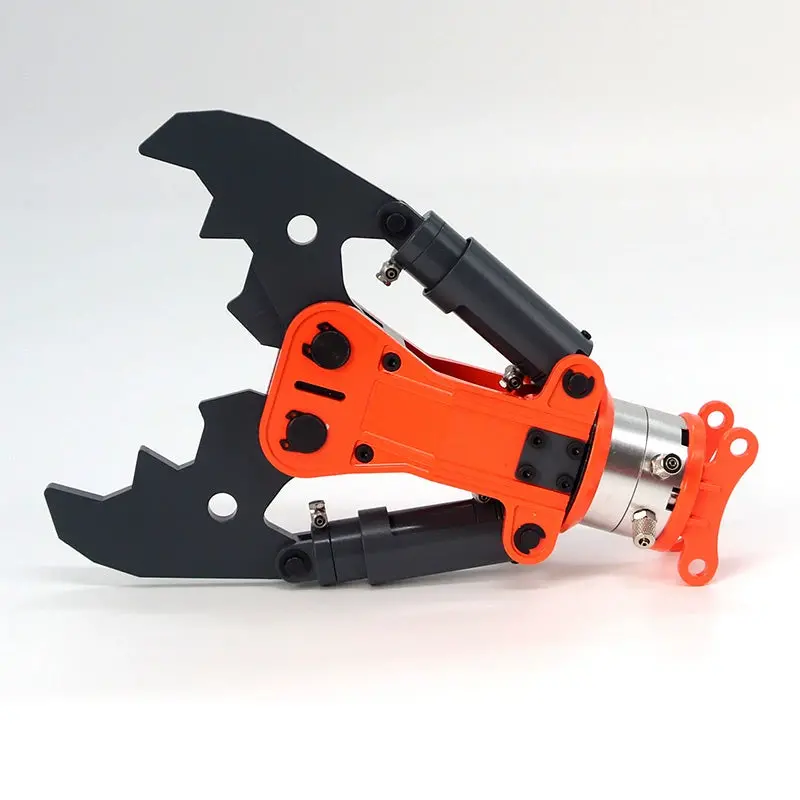

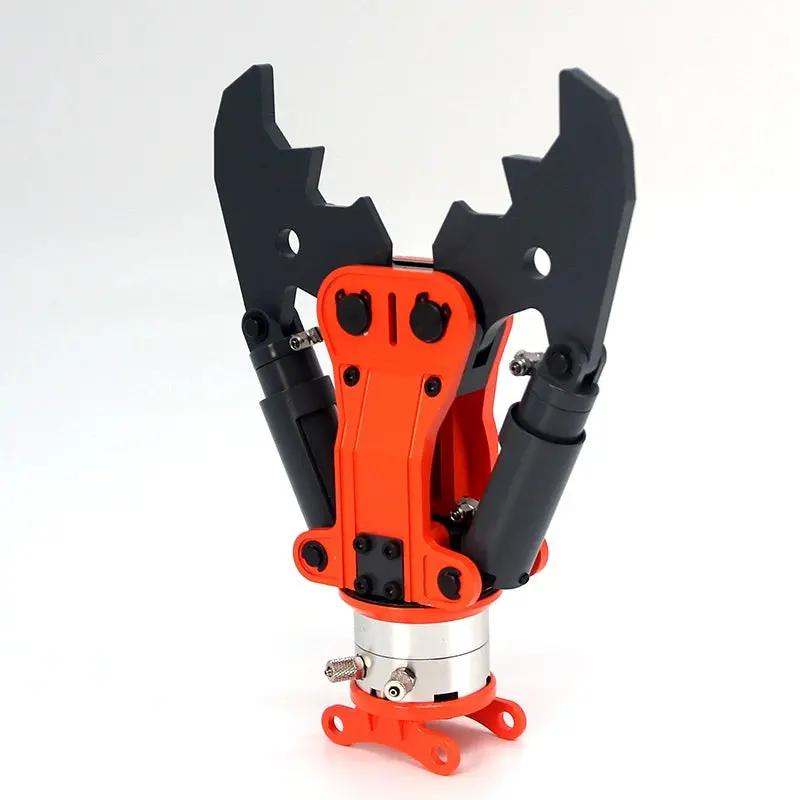

Hydraulic shears (two-way oil circuit)
Can rotate left and right more than 270° (left rotation 135°; right rotation 135°)
Maximum shearing diameter: ordinary iron wire φ2.0
Remarks (you need to complete the modification yourself, we do not provide instructions, only the following parameters):
This hydraulic quick-change upgrade kit requires additional configuration:

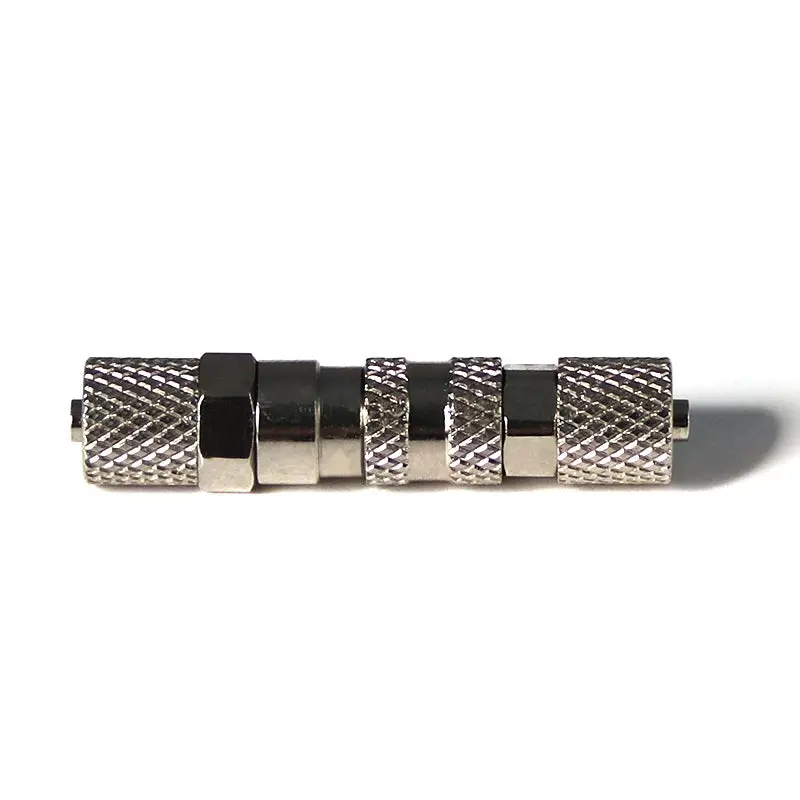

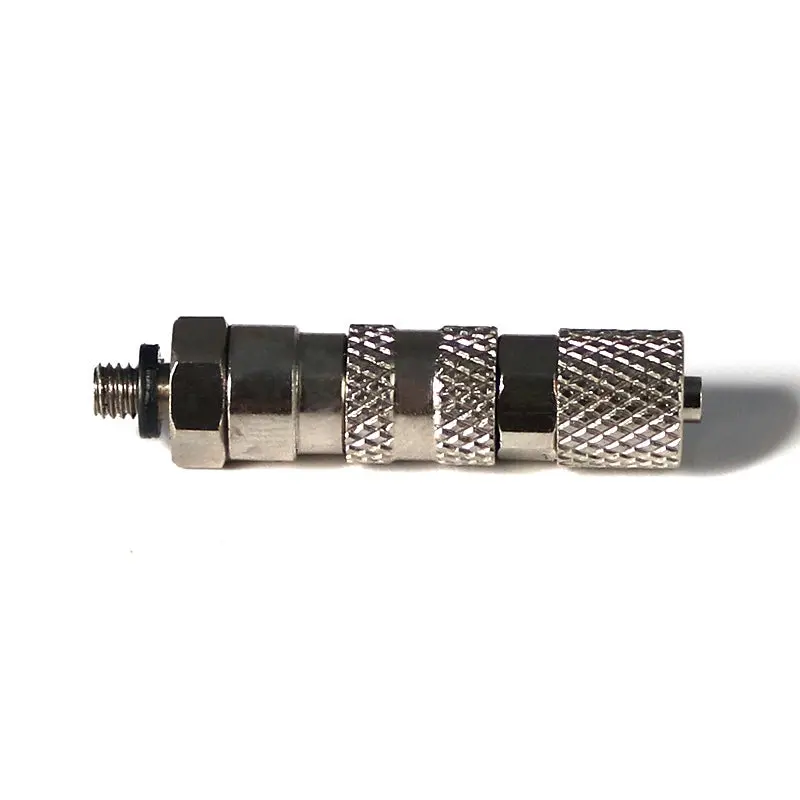

Hydraulic valves with more than 3 channels, M5-3 special oil nozzles, steering gear, upgraded steering gear mounting plate, oil pipe fixing clamp
The oil circuit needs to be upgraded (outer diameter φ3.2MM high-pressure oil pipe and special oil nozzle)
Need to purchase a remote control separately (more than 10 channels)

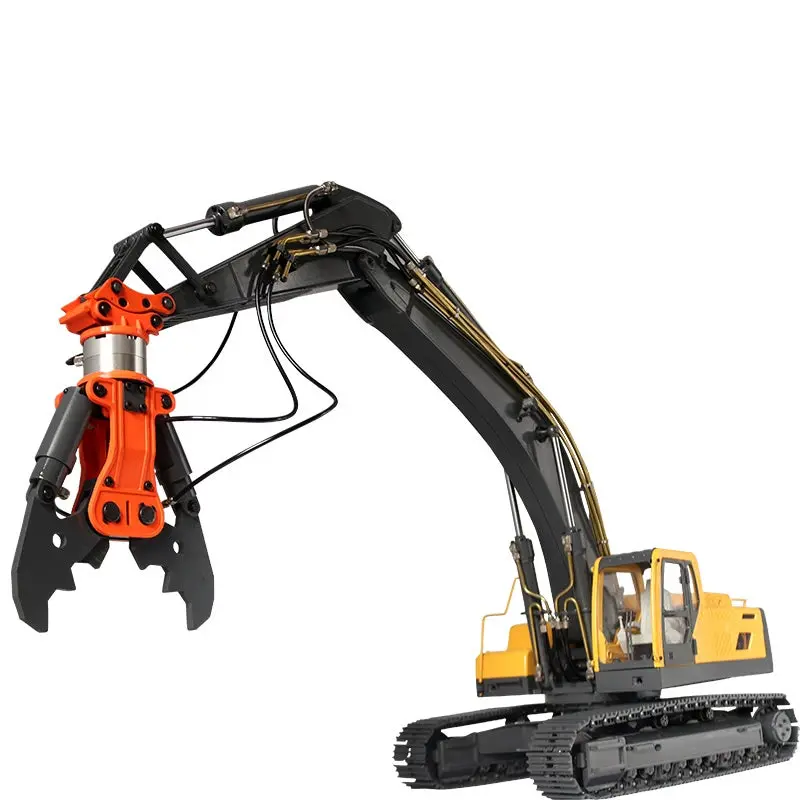

Loading effect, quick change for photo excavator needs to be purchased separately.
