Description
Specifications:

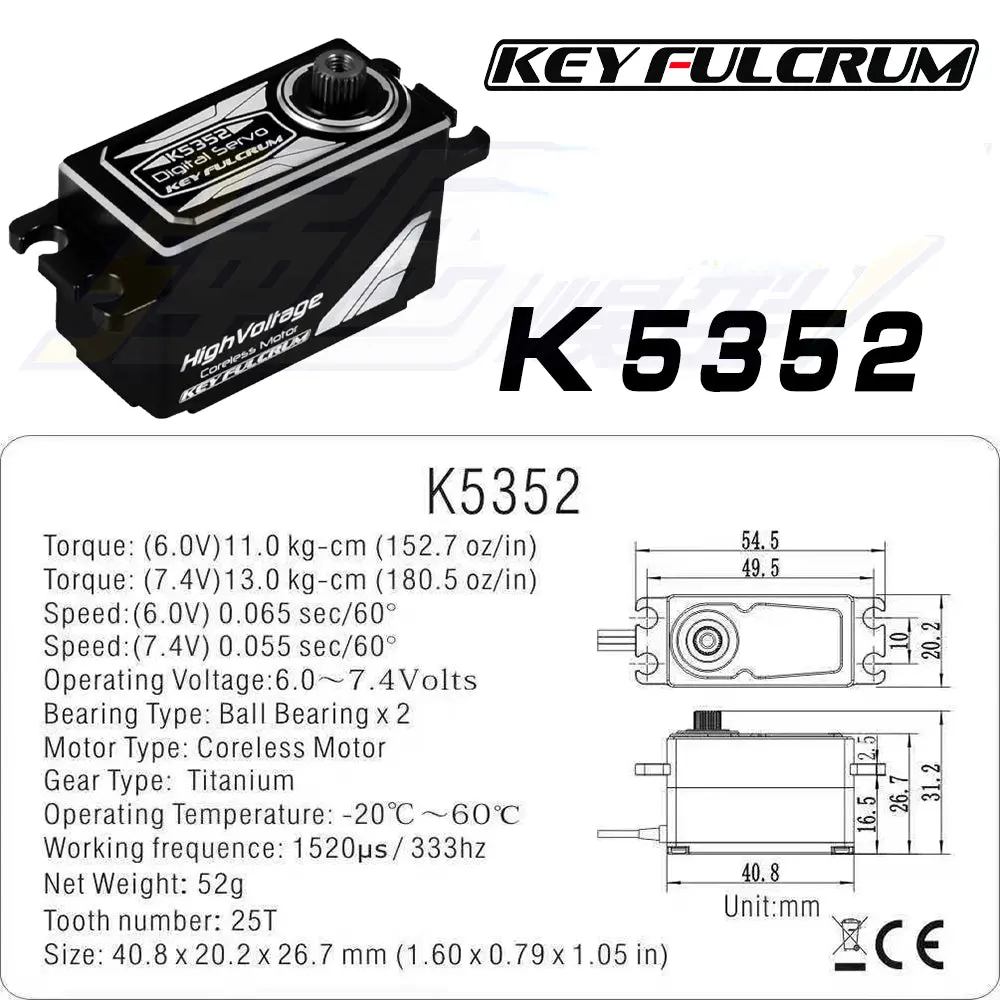

Model: K5352 0.05S 13KG Short Body Coreless Digital Servo
Suitable for flat-drift drift cars with a response speed of 0.65S at a working voltage of 6V
A speed of 0.55S was reached at a high voltage of 7.2V.
Suitable for 1/10 RC car models such as On road RV, drift car, off-road vehicle, F1 and so on
Torque: (6.0V)11.0 kg-cm (152.7 oz/in)
Torque: (7.4V)13.0 kg-cm (180.5 oz/in)
Speed:(6.0V) 0.065 sec/60
Speed:(7. 4V) 0.055 sec/60
Operating Voltage:6.0~ 7.4Volts
Bearing Type: Ball Bearing x2
Motor Type: Coreless Motor
Gear Type: Titanium
Operating Temperature: -20″C ~ 60″C
Working frequence: 1 520us/ 333hz
Net Weight: 52g
Tooth number: 25T
Size: 40.8×20.2×26.7 mm(1.60×0.79x 1.05 in)
Model: K7351 0.05s 13KG Short Body Brushless Digital Servo
Suitable for 1/10 RC car models such as On road RV, drift car, off-road vehicle, F1 and so on
Torque: (6.0V)12.0 kg-cm (166.6 0z/in)
Torque: (7.4V)13.0 kg-cm (1 80.50z/in)
Speed:(6.0V) 0.06 sec/60°
Speed:(7.4V) 0.05 sec/60°
Operating Voltage: 6.0~ 7.4Volts
Bearing Type: Ball Bearing X 2
Motor Type: Brushless Motor
Gear Type: Steel & Titanium
Operating Temperature: -20°C ~ 60°C
Working frequence: 1520μs/ 333hz
Size: 40.8x 20.2×26.7 mm(1.60×0.79×1.05 in)

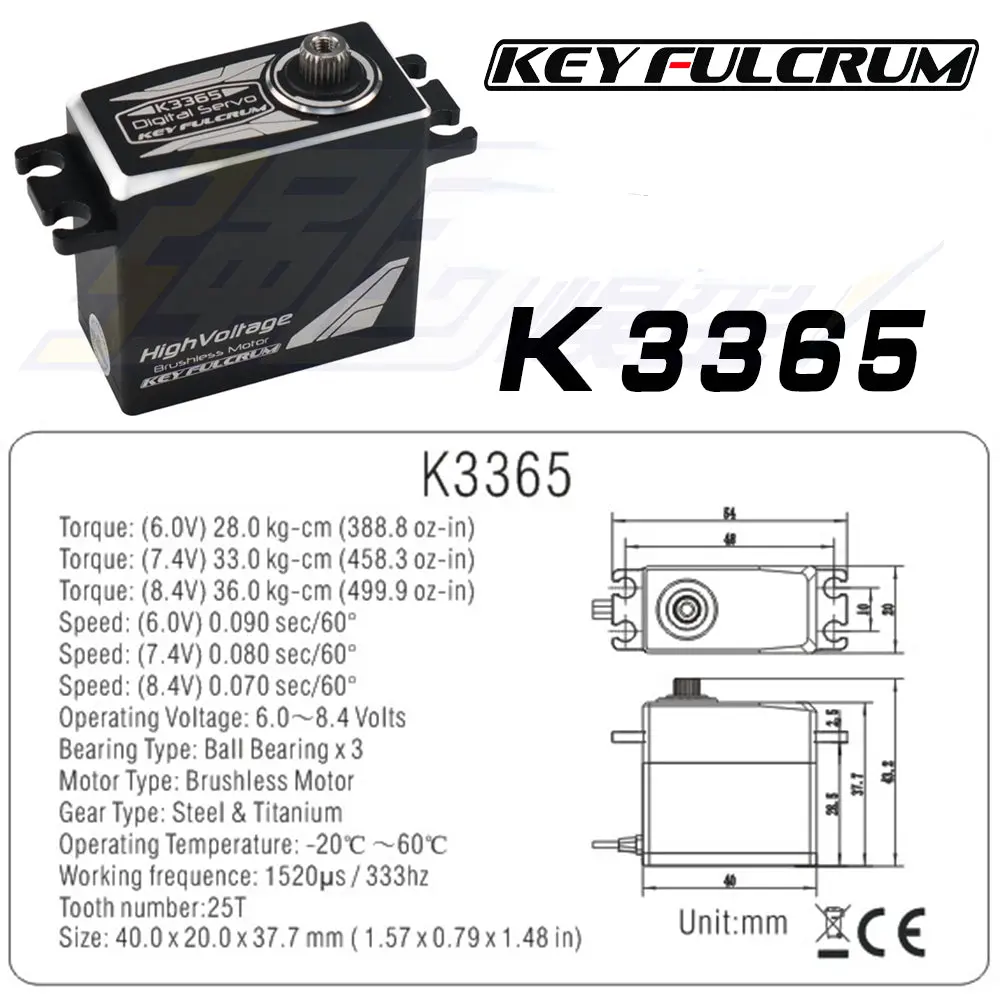

Model: K3365 36KG Brushless Digital Servo
1/8 off-road/truck Car / On-road/GT and other models throttle/direction control,Competition servo,
all-metal shell high-pressure brushless digital standard servo,
CNC machined aluminum alloy shell,
small gear rotation sound, small gear gap, silent, blocked rotation for 120 minutes without burning the servo, high cost performance.
Torque: (6.0V) 28.0 kg-cm (388.8 oz-in)
Torque: (7.4V) 33.0 kg-cm (458.3 oz-in)
Torque: (8.4V) 36.0 kg-cm (499.9 oz-in)
Speed: (6.0V) 0.090 sec/60″
Speed: (7 4V) 0.080 sec/60
Speed: (8.4V) 0.070 sec/60″
Operating Voltage: 6.0~8.4 Volts
Bearing Type: Ball Bearing X 3
Motor Type: Brushless Motor
Gear Type: Steel & Titanium
Operating Temperature: -20″C ~ 60″C
Working frequence: 1520us 1 333hz
Tooth number:25T
Size: 40.0×20.0x37.7 mm(1.57×0.79×1.48 in)

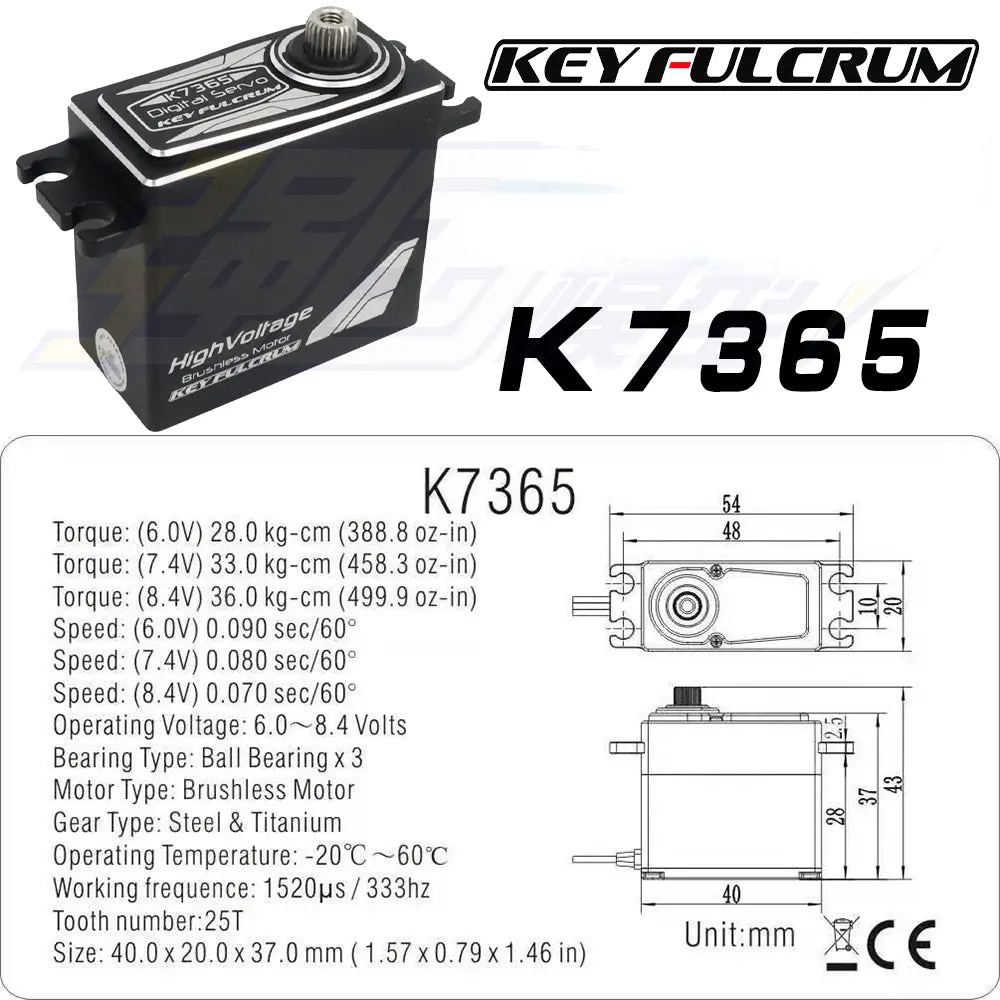

Model: K7365 36KG 0.07S Brushless Digital Servo
1/8 off-road/truck Car / On-road/GT and other models RC Car
throttle/direction control,Competition servo,
Torque: (6.0V) 28.0 kg-cm (388.8 0z-in)
Torque: (7. 4V) 33.0 kg-cm (458.3 oz-in)
Torque: (8.4V) 36.0 kg-cm (499.9 0z-in)
Speed: (6.0V) 0.090 sec/60
Speed: (7.4V) 0.080 sec/60
Speed: (8.4V) 0.070 sec/60
Operating Voltage: 6.0~8.4 Volts
Bearing Type: Ball Bearing x3
Motor Type: Brushless Motor
Gear Type: Steel & Titanium
Operating Temperature: -20’C ~60″C
Working frequence: 1 520us/ 333hz
Tooth number:25T
Size: 40.0×20.0x37.0mm(1.57×0.79×1.46 in)

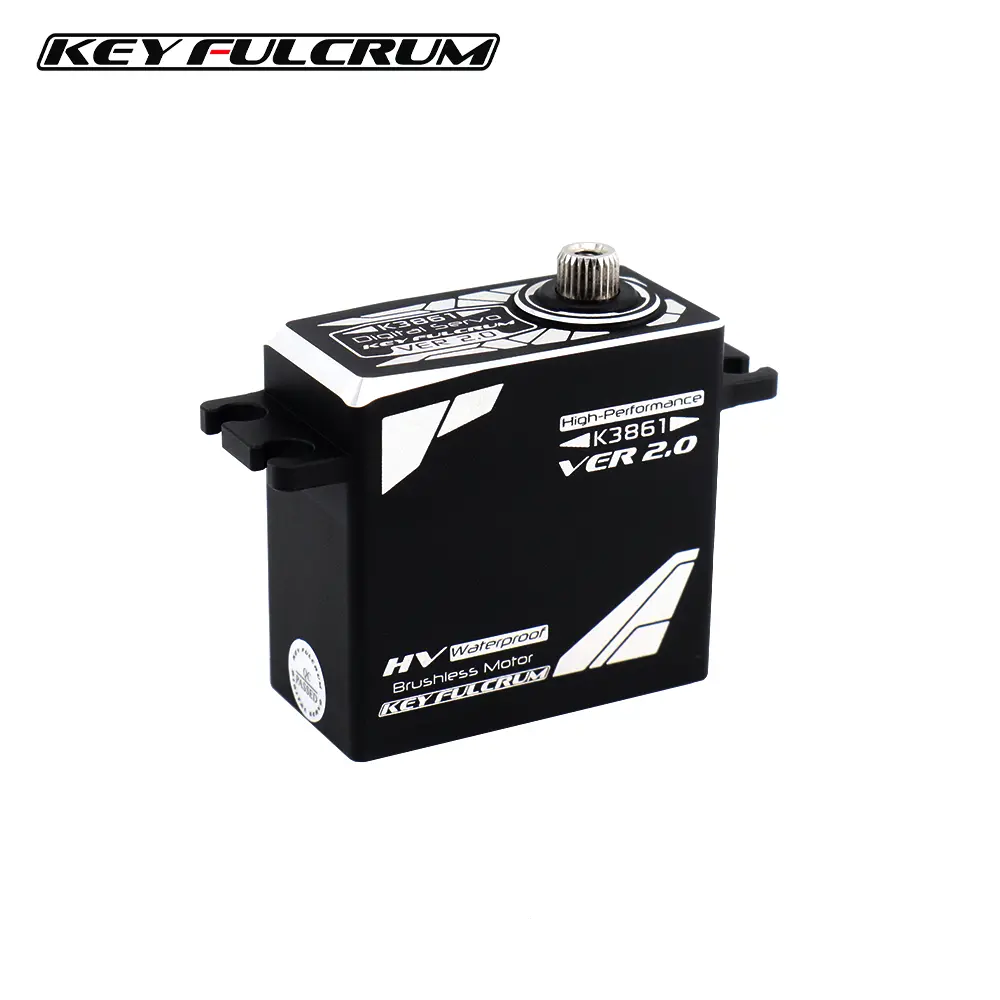

Model: K3861 40KG Brushless Digital Servo
suitable for 1/10 1/8 models, waterproof.
The powerful high-torque brushless high-voltage motor and the all-metal housing meet the off-road needs of RC climbing vehicles.
Torque: (6.0V) 32.0 kg-cm (444.4 oz-in)
Torque: (7 4V) 36.0 kg-cm (499.9 oz-in)
Torque: (8.4V) 40.0 kg-cm 555.5 oz-in)
Speed: (6.0V) 0.105 sec/60
Speed: (7.4V) 0.095 sec/60
Speed: (8.4V) 0.080 sec/60
Operating Voltage: 6.0~8.4 Volts
Bearing Type: Ball Bearing x3
Motor Type: Brushless Motor
Gear Type: Steel & Titanium
Operating Temperature: -20C ~60″C
Working frequence:1520us/ 333hz
Tooth number:25T
Size: 40.0x 20.0×37.7 mm (1.57 x0.79×1.48 in)

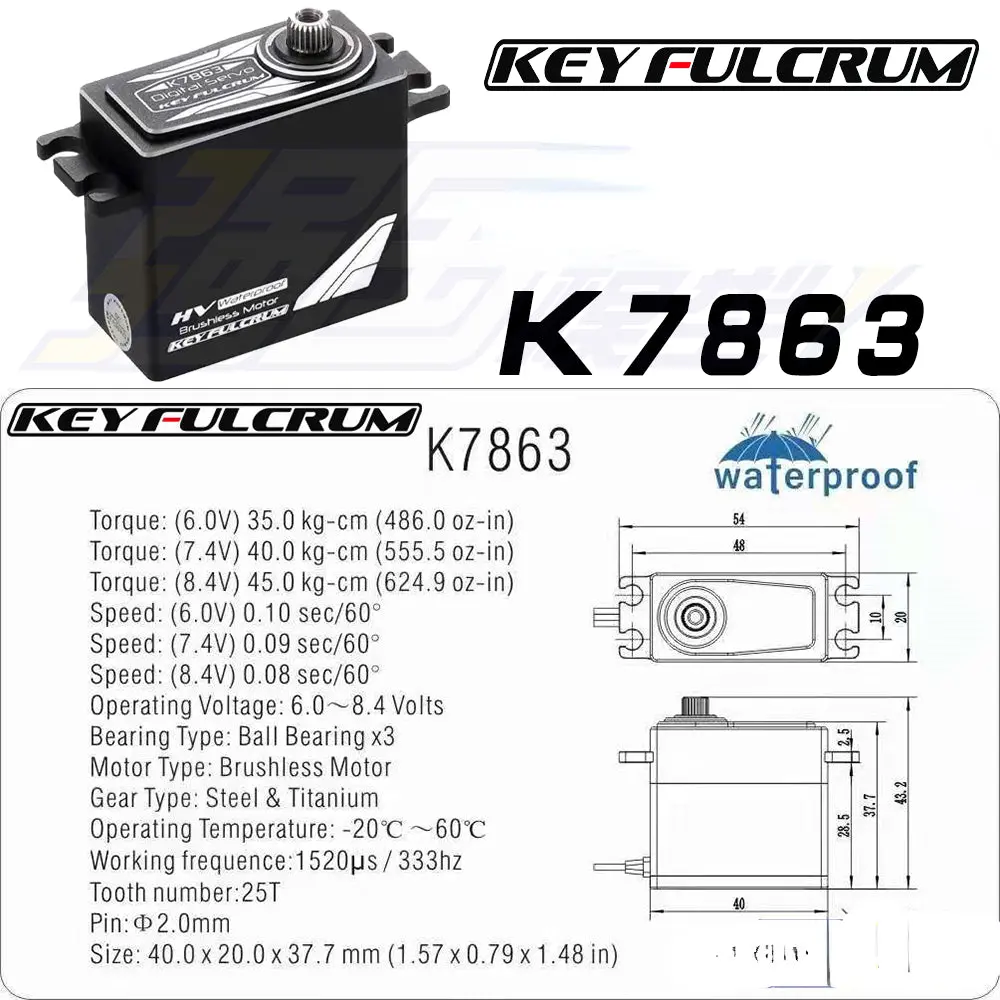

Model: K7863 45KG Brushless Digital Servo
Suitable for models with high performance and high torque and waterproof requirements within 1/5 (1/5 needs to use dual servo system)
Torque: (6.0V)35.0 kg-cm (486.0 oz-in)
Torque: (7.4V)40.0 kg-cm (555.5 oz-in)
Torque: (8.4V)45.0 kg-cm (624.9 oz-in)
Speed: (6.0V)0.10 sec/60°
Speed: (7.4V)0.09 sec/60°
Speed:(8.4V) 0.08 sec/60°
0perating Voltage:6.0～8.4Volts
Bearing Type: Ball Bearing x3
Motor Type: Brushless Motor
Gear Type: Steel & Titanium
0perating Temperature: -20℃～60℃
Working frequence:1520ps /333hz
Tooth number:25T
Pin:2.0mm
Size:40.0×20.0×37.7 mm (1.57×0.79×1.48 in)
