Micro Hydraulic Lifting Cylinder for 1/14 Tamiya Scania R620 RC Trucks

Description

Noted:Hydraulic lifting cylinder Suitable for 1:14 TAMIYA Remote Control Tractor Truck SCANIA R620 FH16 TGX
We are VAJJEXRC professional 1/14 TAMIYA Tractor Truck accessories provider, you can find all 1/14 RC Truck Trailer Upgraded accessories in my shop.

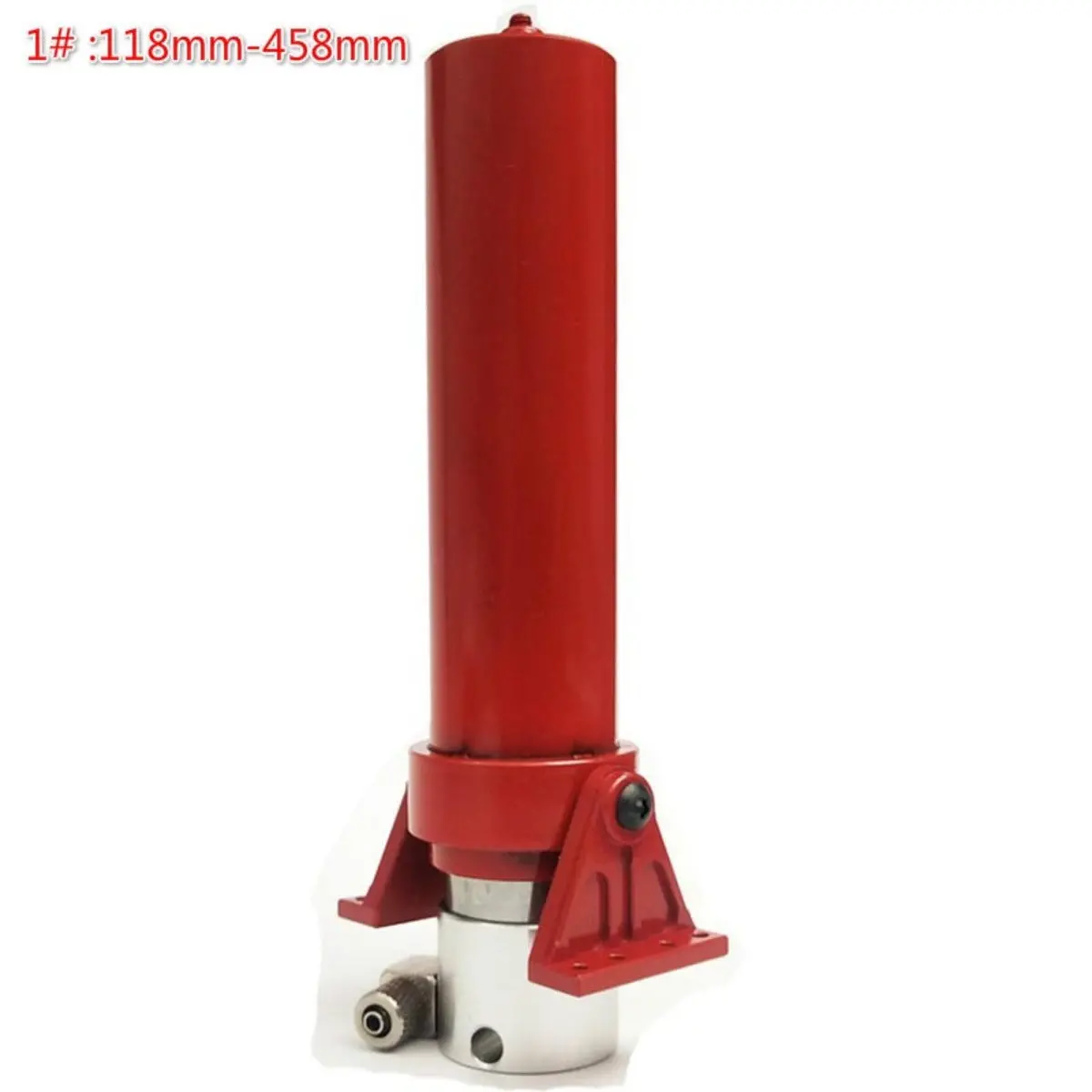

Short cylinder:
Retracted length 118mm (installed cylinder sleeve length),
Extended 458mm (installed cylinder sleeve length),
Stroke 340mm, recommended for use with remote control truck cargo box length within 45cm

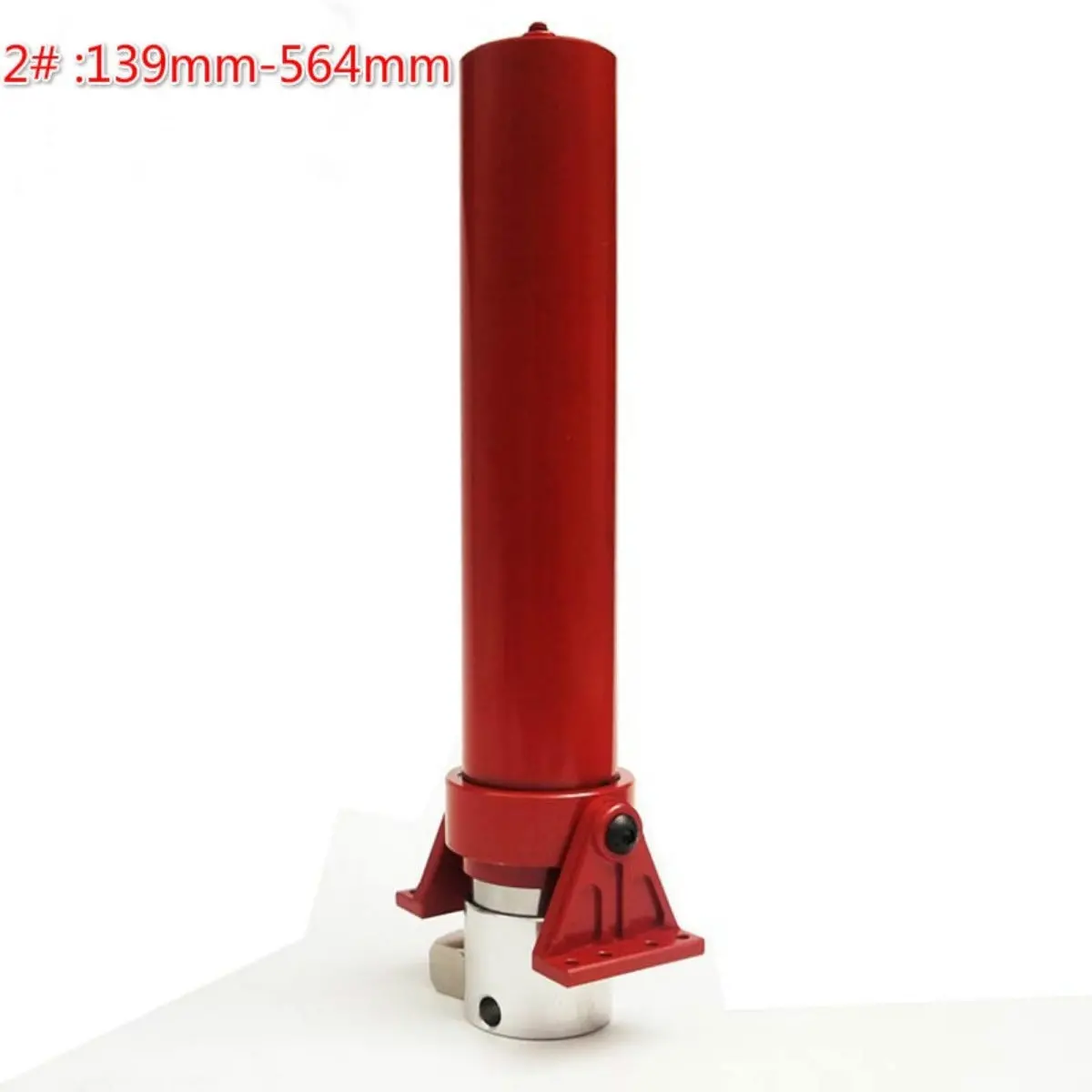

Long cylinder:
Retracted length 139mm (installed cylinder sleeve length),
Extended 564mm (installed cylinder sleeve length),
Stroke 425mm, recommended for use with remote control truck cargo box length within 65cm
Maximum cylinder diameter 20mm, thinner and more simulated, ultimate pressure 8mpa, cylinder base and metal decorative simulated hydraulic oil tank need to be purchased separately
