Description

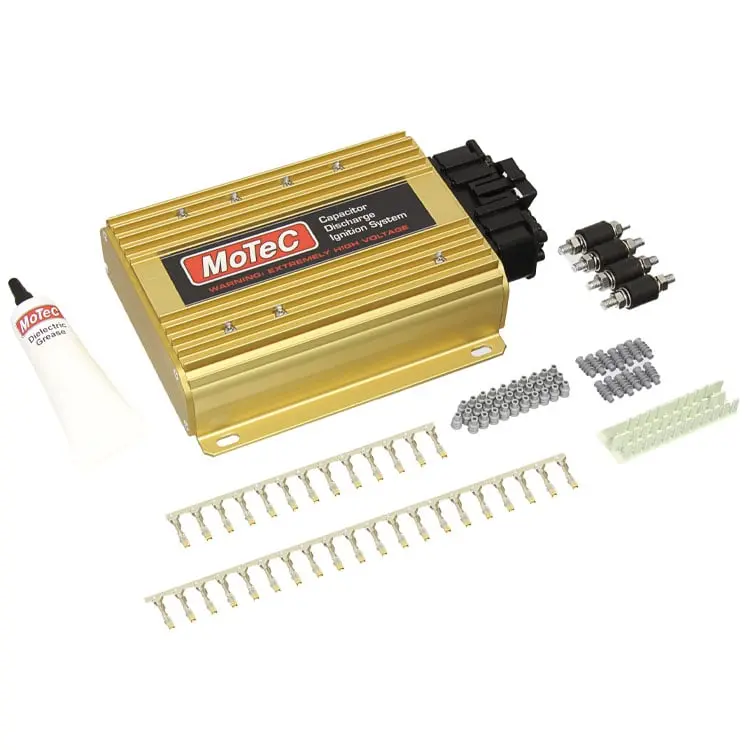

CDI-8
This 8 Channel CDI has been specifically designed for use with MoTeC M1 ECUs. This unit comes with the connector, seals and terminals.

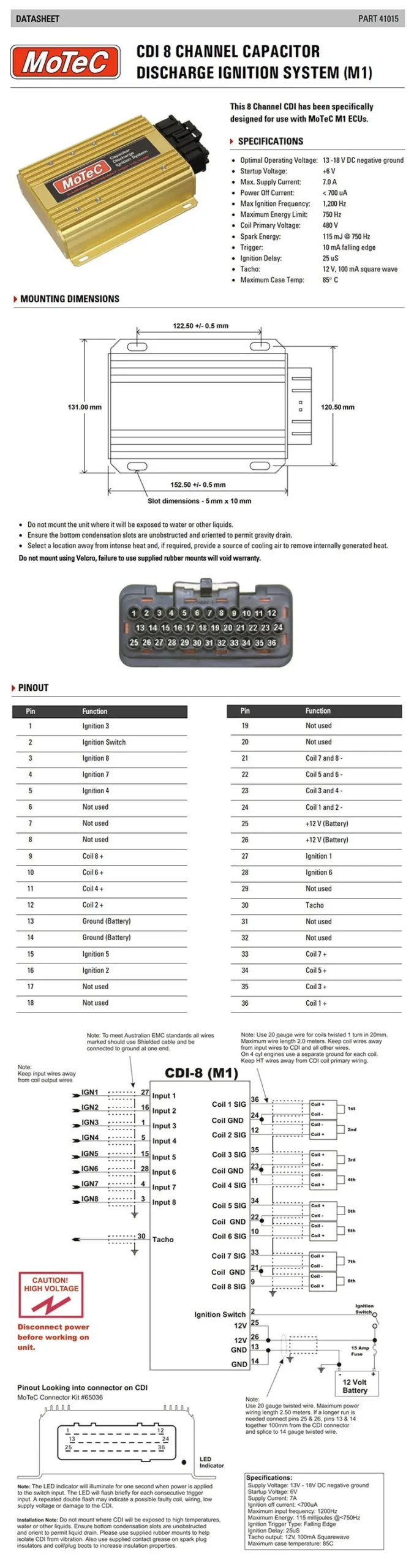

Specifications:
- Optimal Operating Voltage: 13 -18 V DC negative ground
- Startup Voltage: +6 V
- Max. Supply Current: 7.0 A
- Power Off Current: < 700 uA
- Max Ignition Frequency: 1,200 Hz
- Maximum Energy Limit: 750 Hz
- Coil Primary Voltage: 480 V
- Spark Energy: 115 mJ @ 750 Hz
- Trigger: 10 mA falling edge
- Ignition Delay: 25 uS
- Tacho: 12 V, 100 mA square wave
- Maximum Case Temp: 85° C
