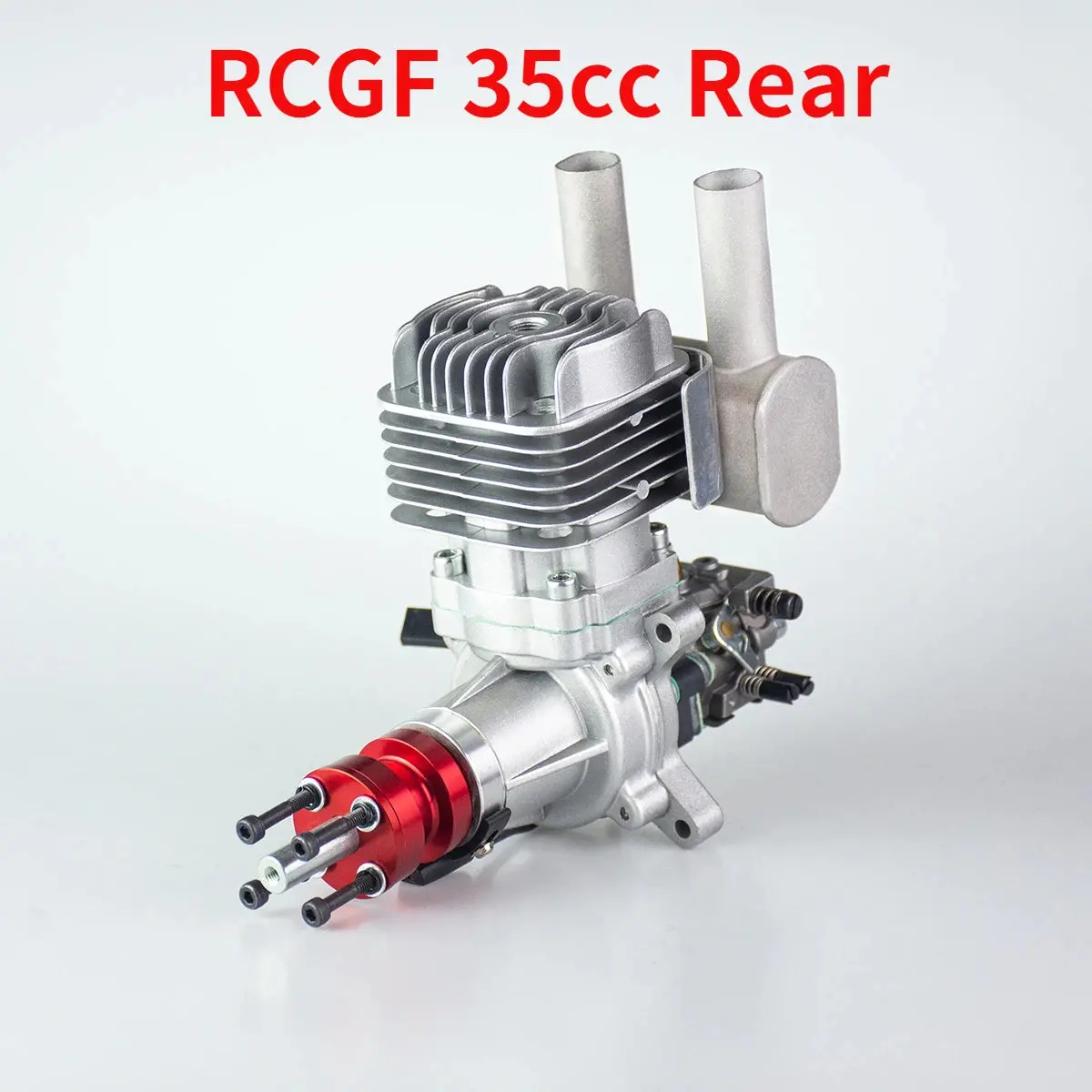

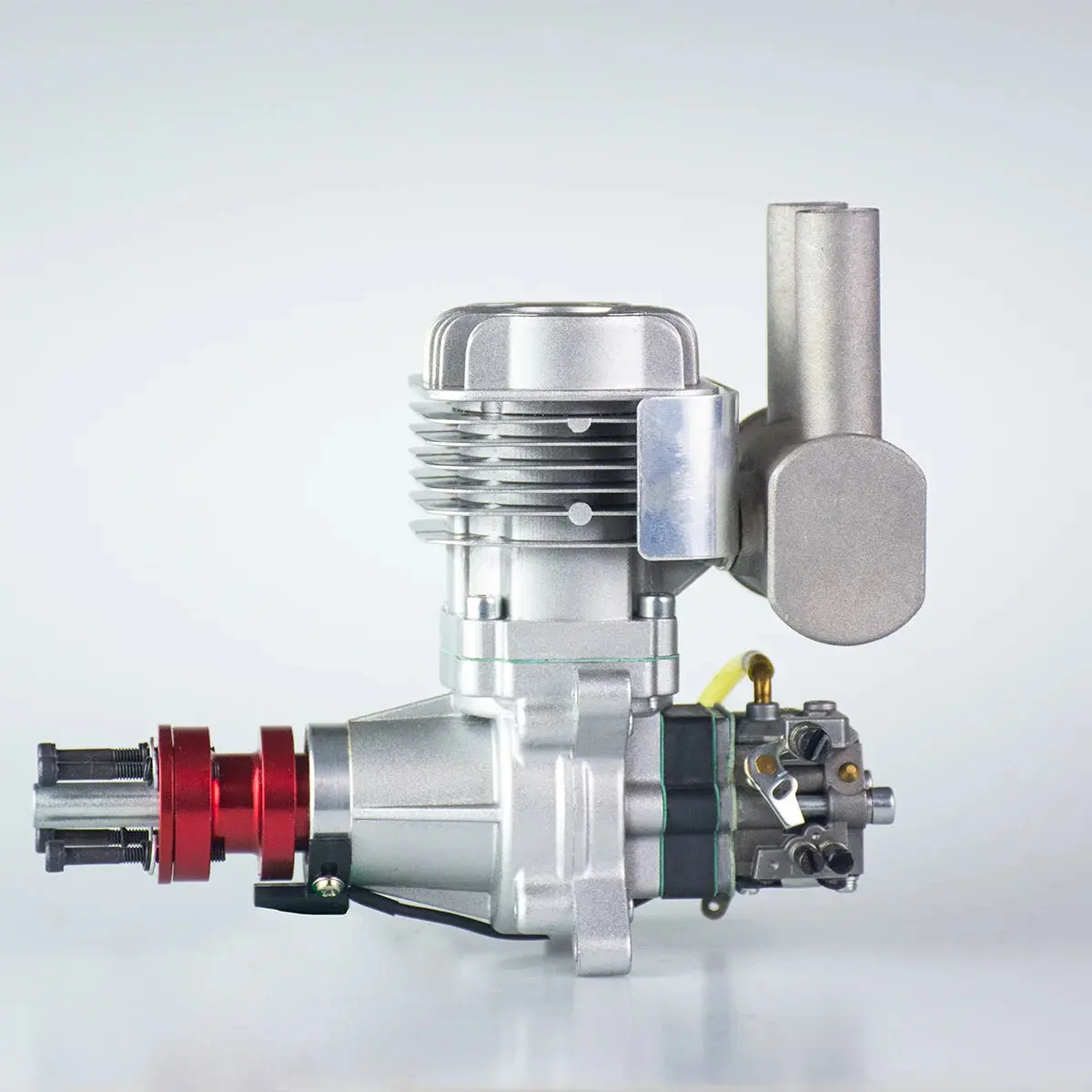

RCGF 35cc Gasoline Engine for Large RC Airplanes – Four-Stroke Design

Description

Brand Name : RCGF
Model Number : 35CC RE

 Parameter:

• Type : 2 cycle piston valve type gasoline engine for airplane

•

• Piston displacement Cylinder (cc) : 35cc  (2.13 cu in)

•

• Bore x Stroke (mm): 1.53 in(39mm) x 1.18 in (30mm)

•

• Carburetor : Walbro

•

• Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)

•

• Power supply: 4.8-8.4V

•

• Maximum Output :4.1HP@9000

•

• Requires: Gasoline, 2-cycle oil, ignition battery & propeller

•

• speed rang : 1500-9000rpm

•

• Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommend:30:1

• (90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)

•

• Lubrication Oil : 2 cycle engine oil

•

• Propeller : 19X8 7900rpm (Standard Two leafs prop)

•

• Suggested Propellers: 19×8 & 20×8,20X10

•

• Suggested Break-in Prop: 19×8

•

• Sparking plug: NGK CM6 Type

•

• Cooling System : Air Cooled

 RCGF engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.  Weight :

• Engine: 2.03 lb (923 g)

•

• Muffler: 3.4 oz (97 g)

•

• Ignition Module: 4.4 oz (125 g)

•

• Total: Weight:  2.52 lb (1145 g)

•

 Technical Data:

• Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack

•

• Gasoline/Oil Mix: 30:1

•

• Replacement Spark Plug: NGK CM6 or equivalent

•

• Idle Speed: 1800 rpm/min

•

• Static Thrust:

•

• 19.9 lb (9 kg) @ 328 ft (100 m) altitude

•

• 19.0 lb (8.6kg) @ 5,900 ft (1800 m) altitude
