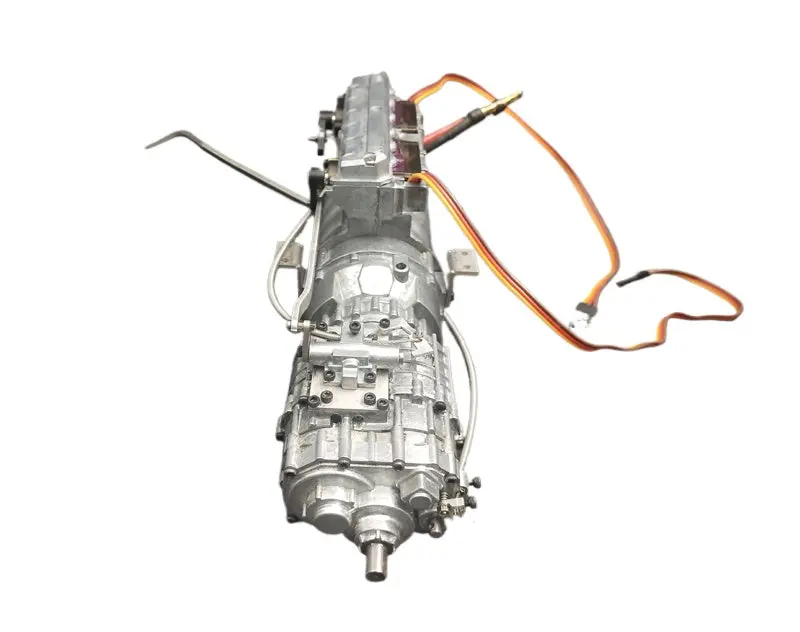

1/14 Tamiya Rc Truck Tractor All Metal Four Speed Gearbox With Reversing Function 1

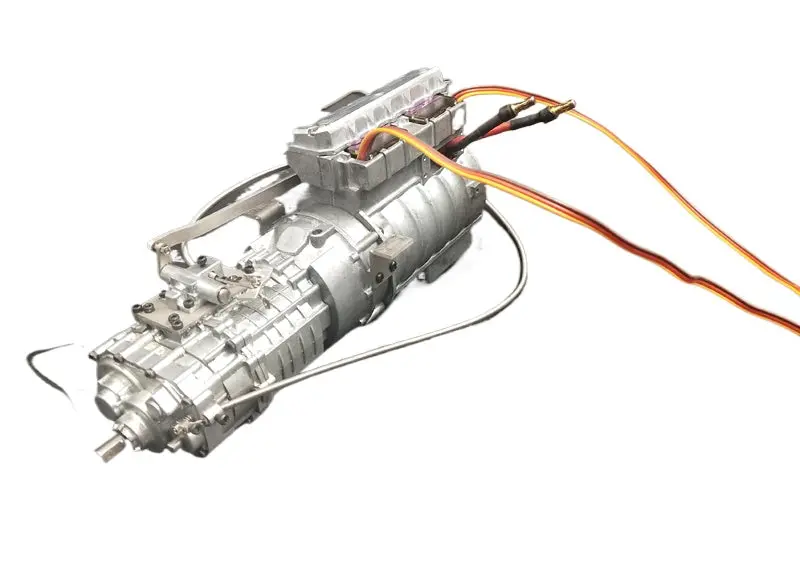

1/14 Tamiya Rc Truck Tractor All Metal Four Speed Gearbox With Reversing Function 2

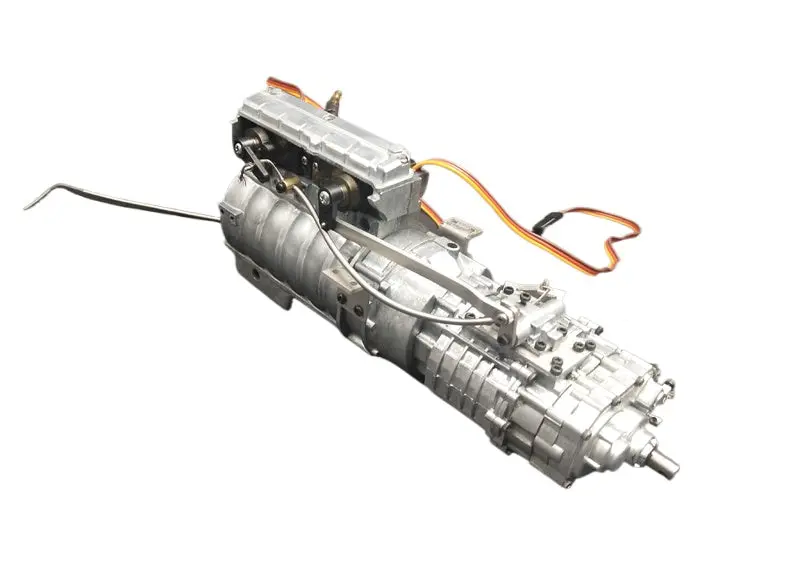

1/14 Tamiya Rc Truck Tractor All Metal Four Speed Gearbox With Reversing Function 3

1/14 Tamiya Rc Truck Tractor All Metal Four Speed Gearbox With Reversing Function 4

Tamiya 1:14 RC Tractor – All-Metal 4-Speed Reversible Gearbox Assembly

Name: Tamiya 1:14 RC Tractor – All-Metal 4-Speed Reversible Gearbox Assembly
Brand: VAJJEXRC
SKU: 722
Availability: InStock

Original price was: $352.00.Current price is: $88.00.

Color

Clear

Quantity

SKU: N/A Category: Vehicle Parts & Accessories Brand: VAJJEXRC

Description

1/14 tamiya rc truck gearbox, the structural design is the same as that of a real car, with an oil pump power take-off, a speed ratio of 5.04 can be used to distribute power directly from the gearbox to the oil pump, a 3-mm oil pump output shaft, a gearbox shift structure adopts a real car double H shift structure design, a double steering gear shift structure, and the shift is more accurate. It integrates the reverse gear design of a real car. The first gear ratio is 63.34, the second gear is 34.8, the third gear is 19.12, the reverse gear is 75.52, and the 5-mm output shaft can directly jump gears, reverse gear is -3 or 1-3 or reverse gear to 2. Quality assurance, the gears are made of stainless steel The shell is made of zinc alloy, which makes the simulation more durable. Mold friends can choose the appropriate motor T number according to their own needs. The tractor is recommended to be 27T, and the mud head can be selected to be 35-55T.
package：1xgearbox with motor
