DLE 20CC DLE20RA Single-Cylinder 2-Stroke Gas Engine – For RC Airplane Models

Description

DLE20 20RA Two-Stroke Engine
DLE 20CC DLE20RA  Two Strokes Single Cylinder Gasoline Engine for Rc Gas Airplane Model

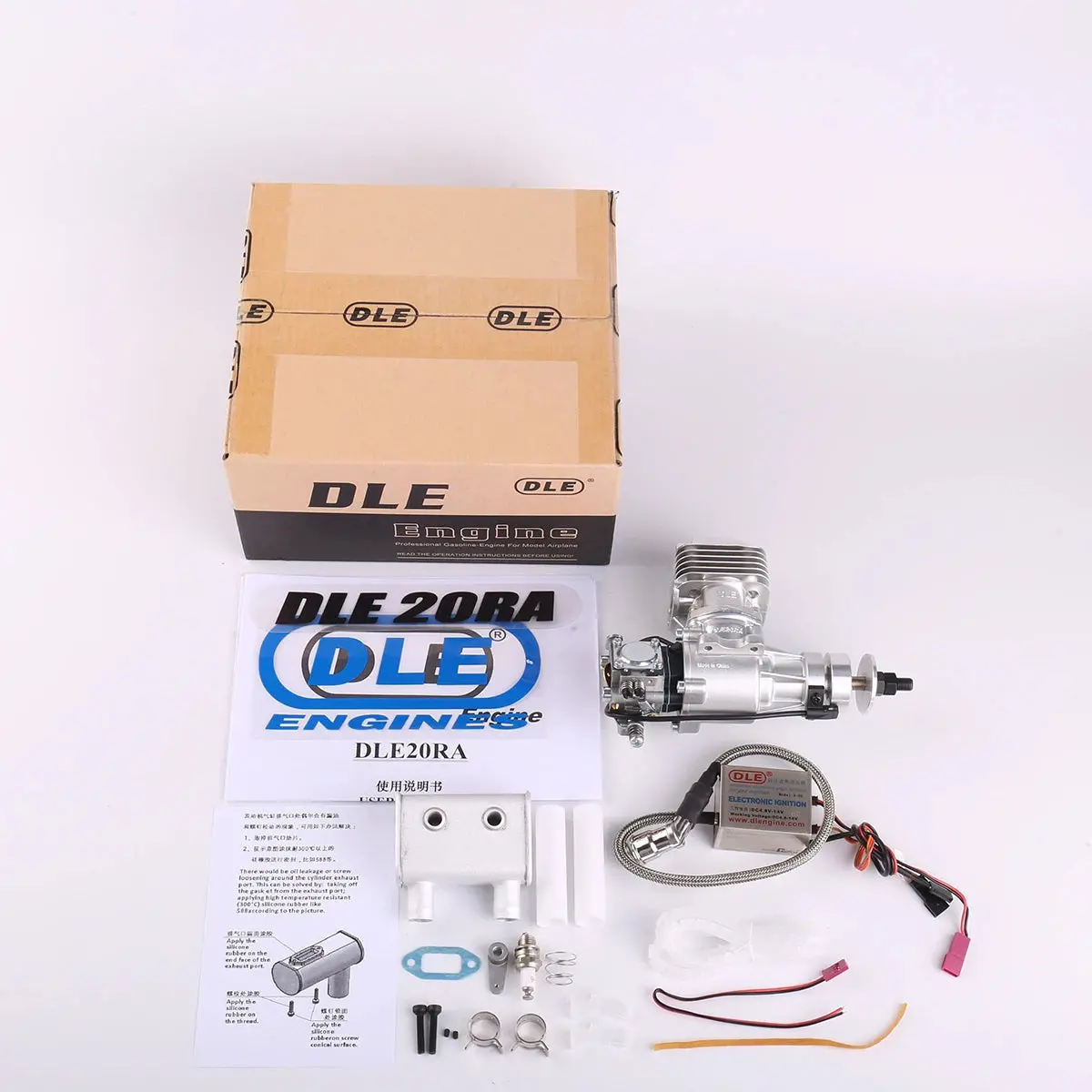

Packing list:

DLE engine * 1

DLE electronic igniter set (CDI) * 1

Carburetor * 1

Engine aluminum column nail set * 1

Exhaust pipe group * 1



Product parameters

Performance: 2.5hp/9000rpm

Idle speed: 1700 RPM / min

Tension: 6kg / 100M above sea level

Tensile force: 5.3kg/1800m above sea level

Applicable propeller specification: 14 × 10；15 × 8; 16 × 6; 17 × 6

Applicable spark plug model: NGK CM6



Parameters:

Displacement: 20cm3

Cylinder bore × Stroke: 32mm × 25mm

Compression ratio: 10.5:1

Lubrication ratio: 30:1

Weight: 660g of main engine + 80g of exhaust pipe + 140g of igniter

Working voltage of igniter: 4.8v-8.4v

Logistics size：23cm × 20cm × 12cm Logistics weight: 1.2KG/piece
